JGS 340 Sequential Bypass Valve

Available in black!

This 34mm bypass valve features

-Billet aluminum construction -Dual valve for great surge protection

-Nomex silicone diaphragm -Adjustable spring pressure

-Pull type valve for zero chances of leakage -1.5" hose connection for mass air flow cars

-SS and aluminum weld-on adapters -

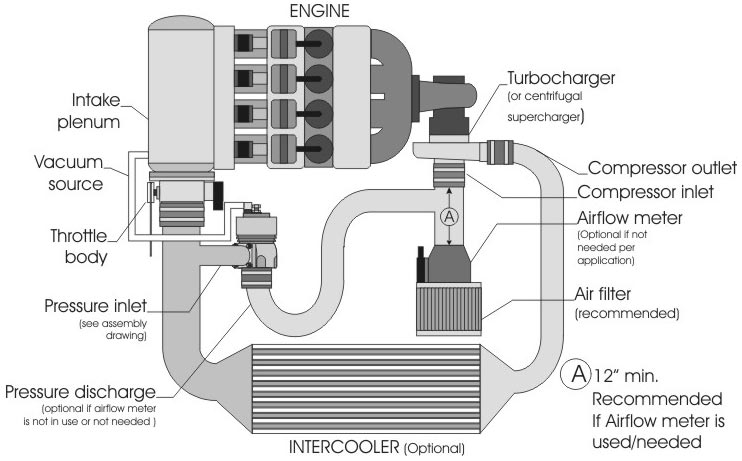

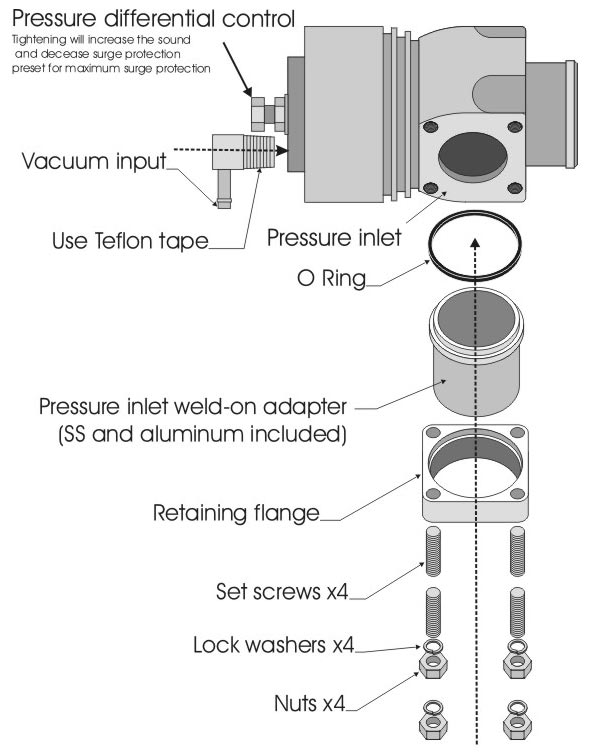

JGS340SBV Instructions 1 JGS340SBV Instructions 2

CURRENTLY OUT OF STOCK

Part # TK195

MSRP 199.99

Internet Price- $169.99



OPTIONS-

NEW! OPEN ATMOSPHERE VENT ATTACHMENT!

This attachment allows discharge of our (and others) bypass valve in to the atmosphere (not re-circlated back into the intake track). Intern making a more aggressive sound and eliminating most of the issues normally seen when dumping to atmosphere with any air flow meter type car. Basically this valve only allows postive air pressure to exit the system and is closed under all other conditions. Basically you will have some rich conditions when the bypass is discharging but thats about it, no stalling at idle. Also works with any other blow-off/bypass valve with a 1.5" hose connection.

TK195-14

$24.99
